Vantage garage door construction

Technical Specifications

Features

  • 3 layers | Polystyrene
  • Thickness: 2"
  • Exterior face: light woodgrain finish | Interior face: stucco finish
  • Door interior: regardless of the colour chosen, the inside is always White (door, window frames and inserts).

Sizes

  • Widths from 8' to 20', in 1" increments
  • Heights from 6'6" to 8', in 3" increments

Please contact us for more details on other available sizes.

Colours

STEEL (light woodgrain finish)

Standard

White colour for steel Garaga garage doors

White

Almond colour for steel Garaga garage doors

Almond

Sahara colour for steel Garaga garage doors

Sahara

Sandstone colour for steel Garaga garage doors

Sandstone

Terrastone colour for steel Garaga garage doors

Terrastone

Brown colour for steel Garaga garage doors

Brown

Premium

Black Ice colour for steel Garaga garage doors

Black Ice

Dark Walnut colour for steel Garaga garage doors

Dark Walnut

Cherry colour for steel Garaga garage doors

Cherry

Premium colours: small additional fees apply.

The accuracy of colours on the website may vary depending on your screen settings. To see the true colours, please contact your local Garaga dealer for a sample.

8’ high door layouts

The 8’ high doors are built with 5 sections, except for Moderno SSG design (4 sections).

Vantage Construction - Heights

Layouts

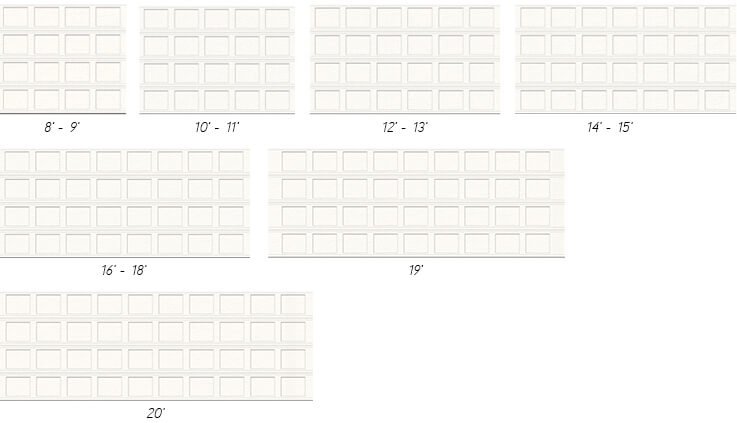

Shaker‑Flat Short

Layouts Shaker-Flat Short

Shaker‑Flat Short

Shaker-Flat Short - 8 feet

8' to 11'

Shaker-Flat Short - 10 feet

10' to 11'

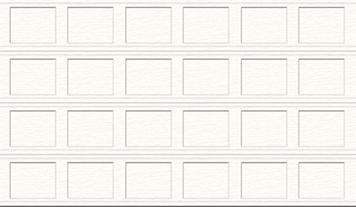

Shaker-Flat Short - 12 feet

12' to 15'

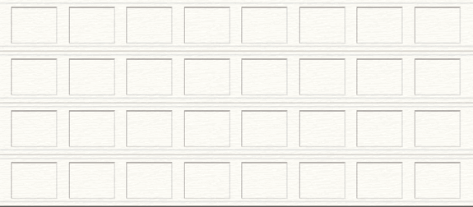

Shaker-Flat Short - 16 feet

16' to 18'

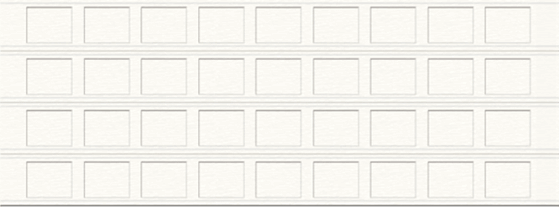

Shaker-Flat Short - 19 feet

19'

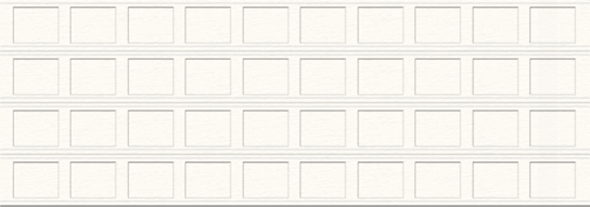

Shaker-Flat Short - 20 feet

20'

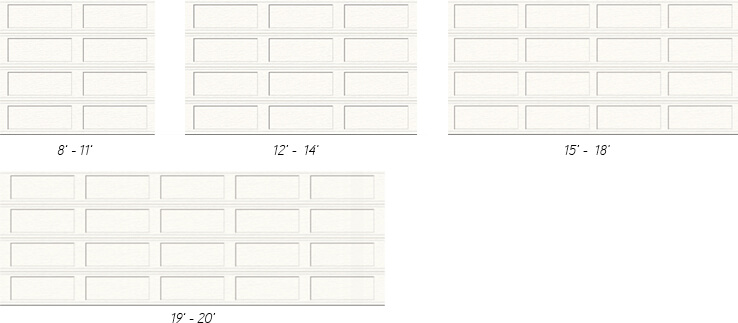

Shaker‑Flat Long

Layouts Shaker-Flat Long

Shaker‑Flat Long

Shaker-Flat Long - 8 feet

8' to 11'

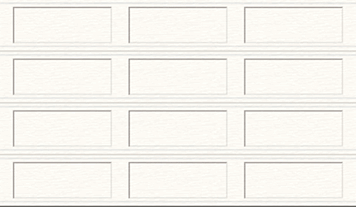

Shaker-Flat Long - 12 feet

12' to 14'

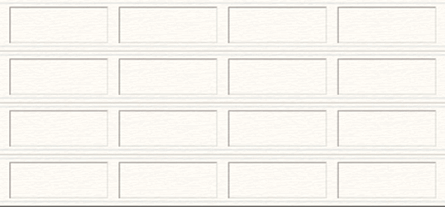

Shaker-Flat Long - 15 feet

15' to 18'

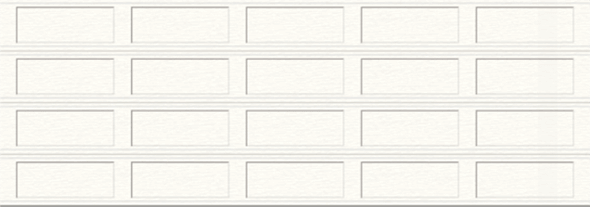

Shaker-Flat Long - 20 feet

19' to 20'

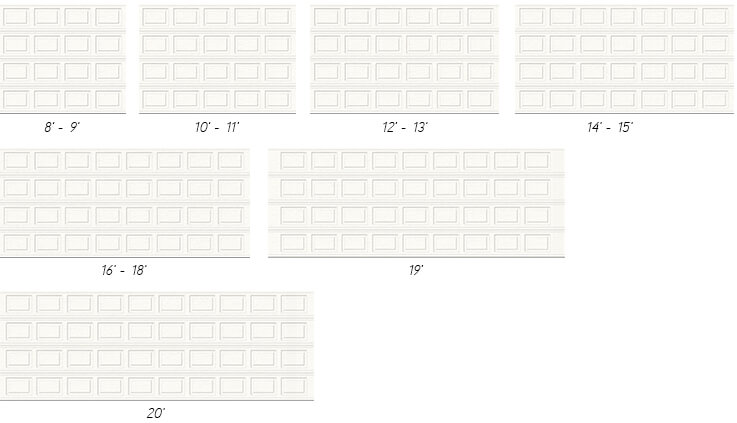

Classic Short

Layouts Classic Short

Classic Short

Classic Short - 8 feet

8' to 9'

Classic Short - 10 feet

10' to 11'

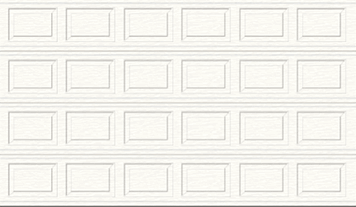

Classic Short - 12 feet

12' to 13'

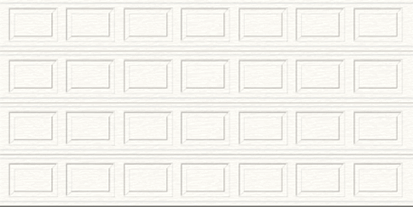

Classic Short - 14 feet

14' to 15'

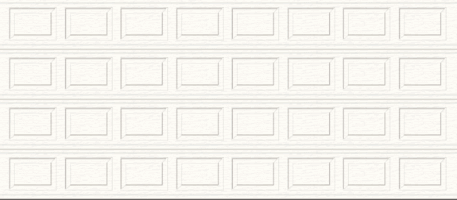

Classic Short - 16 feet

16' to 18'

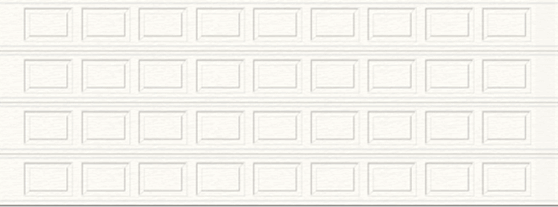

Classic Short - 19 feet

19'

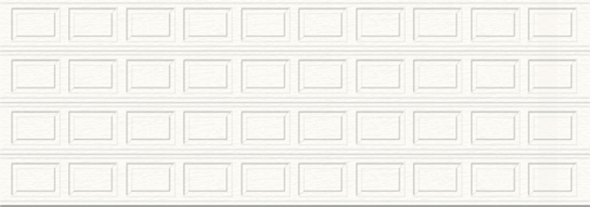

Classic Short - 20 feet

20'

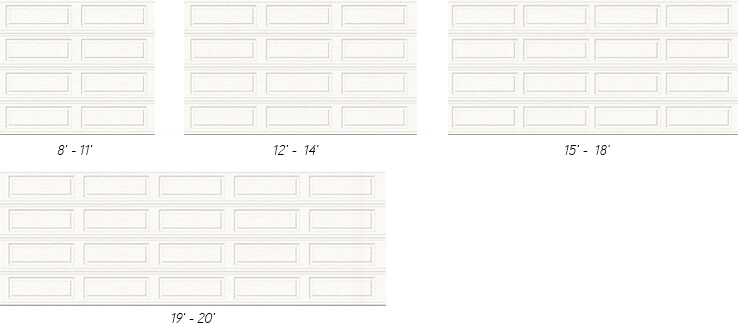

Classic Long

Layouts Classic Long

Classic Long

Classic Long - 8 feet

8' to 11'

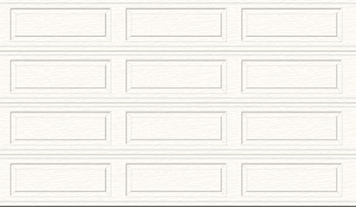

Classic Long - 12 feet

12' to 14'

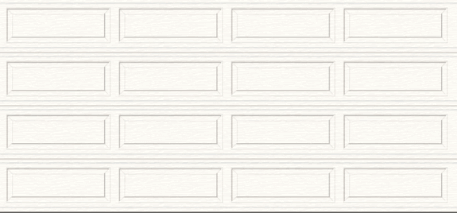

Classic Long - 15 feet

15' to 18'

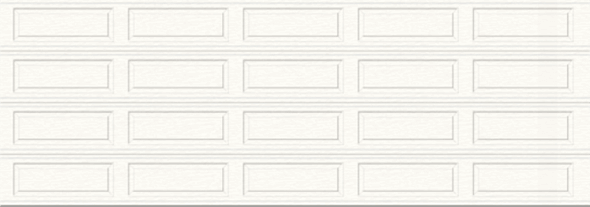

Classic Long - 20 feet

19' to 20'

Moderno SSG

Layouts Moderno SSG

Available section heights: 21" and 24".

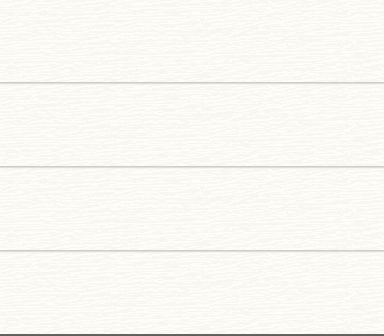

Flush

Layouts Flush

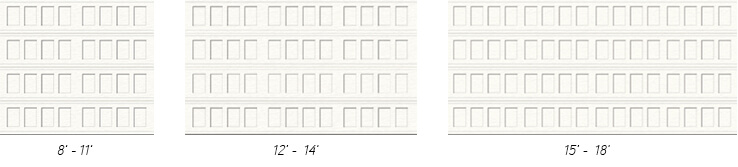

Shaker‑Flat XSmall

Layouts Shaker-Flat XSmall

Shaker‑Flat XSmall

Shaker-Flat XSmall - 8 feet

8' to 11'

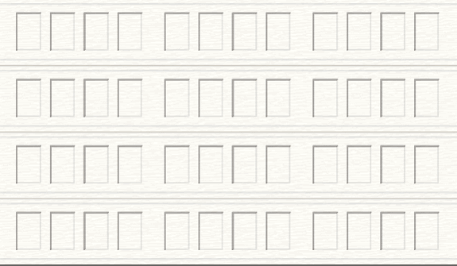

Shaker-Flat XSmall - 12 feet

12' to 14'

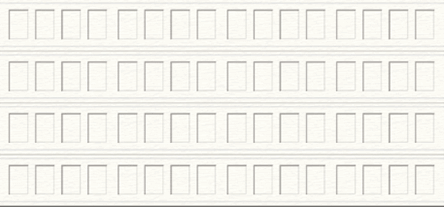

Shaker-Flat XSmall - 15 feet

15' to 18'

Shaker‑CS Short

Layouts Shaker-CS Short

Shaker‑CS Short

Shaker-CS Short - 8 feet

8' to 11'

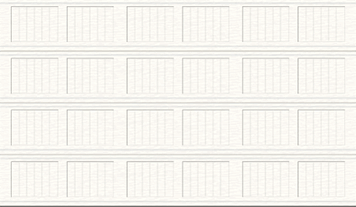

Shaker-CS Short - 12 feet

12' to 14'

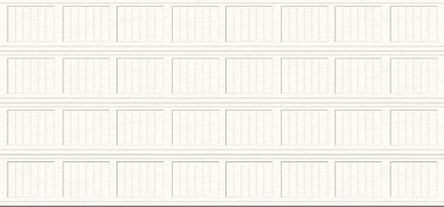

Shaker-CS Short - 15 feet

15' to 18'

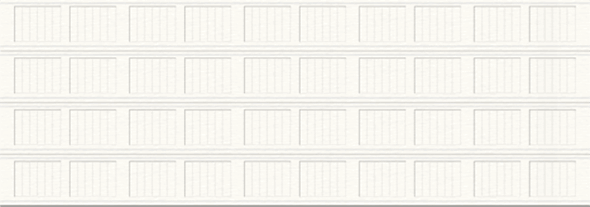

Shaker-CS Short - 20 feet

19' to 20'

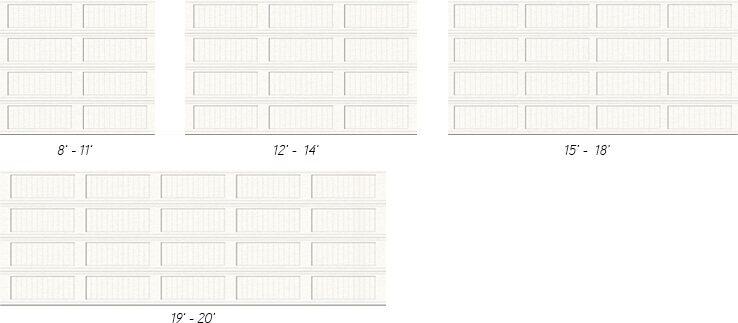

Shaker‑CS Long

Layouts Shaker-CS Long

Shaker‑CS Long

Shaker-CS Long - 8 feet

8' to 11'

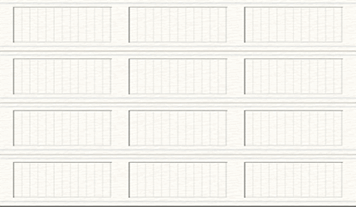

Shaker-CS Long - 12 feet

12' to 14'

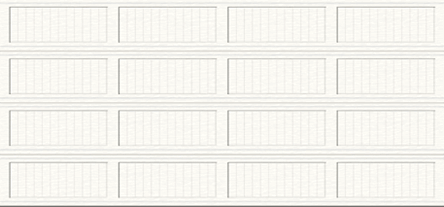

Shaker-CS Long - 15 feet

15' to 18'

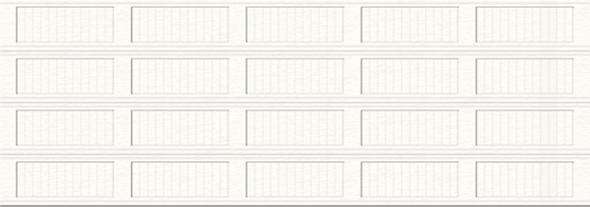

Shaker-CS Long - 20 feet

19' to 20'

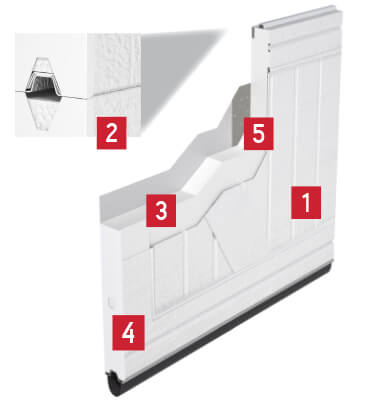

Construction

3 layers, Polystyrene

3 layers | Polystyrene
(Steel + Polystyrene + Steel)

  1
26‑gauge pre‑painted galvanized steel for high durability
  2
2" tongue-and-groove meeting rail to provide a weathertight seal between sections, and rails are hemmed the entire length of the section for added strength and safety
  3
Polystyrene insulation pressure bonded between two layers of steel for energy efficiency
  4
20‑gauge white baked‑on paint finish end stiles for a nice clean look
  5
Full‑length reinforcing plates to solidly attach hinges and struts

The Vantage garage door model belongs to the Mid‑America series of products.

Garaga - Mid-America Series
