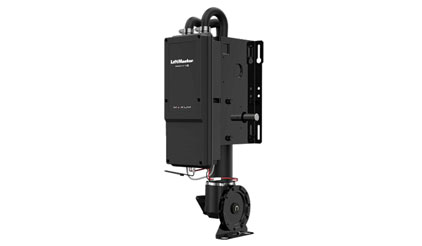

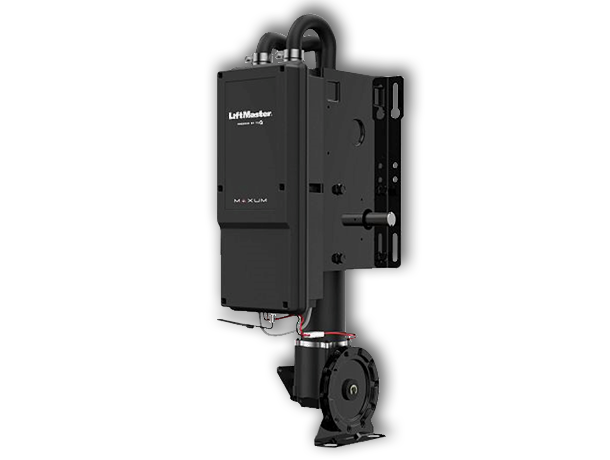

JHDC

Features

This all-new MAXUM commercial door operator is a state-of-the-art platform that introduces next-level versatility in a sleek, purpose-built design that’s easier to install and service. With unrivaled performance and intelligence, the new line-up will help today’s commercial facilities take the next step toward a smarter future.

Drive system: Jackshaft
Available in ½ HP, ¾ HP, 1 HP, 1.5 HP (24VDC, DC Motor)
Voltage/phase: 120Vac 1 PH/240Vac 1/3PH; 480Vac 3PH; 208Vac 3PH (via tra120Vac 1 PH/240Vac 1/3PH; 480Vac 3PH; 208Vac 3PH (via transformer); 600Vac 3PH (via transformer)
Timer‑to‑Close conveniently and confidently closes the door automatically after a predetemined amount of time has elapsed
Battery Backup Capable. Provides seamless operation by providing standby power when the power is down.

Mechanical braking system that adds substantial door position control and prevents the door from being back driven. Brake is included on 2200 models.
Diagnostic and programmation on small form LCD display
MyQ technology and WIFI allows you to securely control and monitor your gate operator from anywhere using your smartphone
3 Monitored Entrapment Protection Inputs, protect up to 3 entrapment protection points with every installation
Manual disconnect when unlocked allows gate to be operated manually, with the hoist chain

Auxiliary Relay Board (AUXREL), easy to install accessory board for auxiliary limit switches, lights, bells, horns, strobes, and other devices.
Optional heater, added when quoted, operating temperature without heater -4°F (-20°C) – 140°F (60°C), with heater (HTR) -40°F (-40°C) – 140°F (60°C)
Compliant with ANSI/CAN/UL325 standards
Speed: Average of 12 inches (304 mm) per second.
Warranty: 2 Years

Standard security systems

Your security, our priority!

Entrapment protection securiy system

CPS‑U photo eyes are shipped with unit. They project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down.

Emergency Release Rope and Handle

Emergency Disconnect, disconnects door operator from door for manual lifting in an emergency.

Security+ 2.0 ^®

Security+ 2.0 ^® radio receiver is standard and virtually eliminates radio frequency interference. Accepts up to 90 remote control devices, 30 keyless entry devices.

Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

Entrapment protection securiy system

Emergency Release Rope and Handle

Emergency Disconnect, disconnects door operator from door for manual lifting in an emergency.

Security+ 2.0^®

Security+ 2.0 ^® Security+ 2.0 ^® radio receiver is standard and virtually eliminates radio frequency interference. Accepts up to 90 remote control devices, 30 keyless entry devices.

Warning

Included in package

Monitored Through-Beam Photo Eye (CPS-U)

Chain Spreader

* Sprocket sold separetly.
Also included: All necessary hardware for installation, antenna, 25 ft. of hoist chain (additional chain can be purchased separately)
